MP5-A Multiparameter Free Chlorine Analyzer

◄

MP5-A Multiparameter Free Chlorine Analyzer

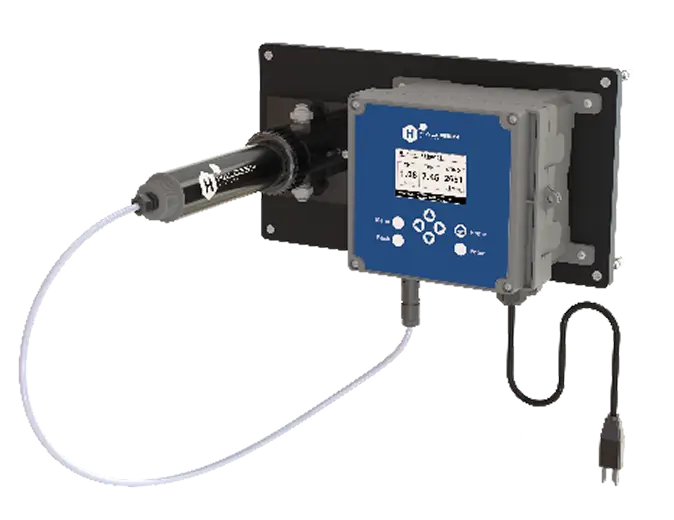

The MP5-A amperometric sensor measures chlorine along with pH, conductivity, temperature, and ORP. It utilizes bare electrodes without membranes and is self-cleaning, allowing for long intervals between calibrations. It is ideal for many applications. It is low-maintenance, flow-independent, and both temperature- and pH-compensated. All Halogen Sensors are NSF-61 certified for safe exposure to drinking water and has no waste streams.

Features

Chlorine Analyzer Accuracy Matters

Maintaining accurate chlorine levels is critical for ensuring water safety, but not all chlorine sensors provide reliable results under real-world conditions. Many sensors advertise impressive accuracy at a pH of 7.0, but most water treatment facilities operate at different pH levels. This discrepancy can lead to inaccurate readings, inefficient dosing, and compliance issues.

MP5-A eliminates these concerns with advanced automated calibration, ensuring precise results across a wide range of operating conditions.

No Waste Streams

Many sites cannot be monitored since a drain cannot be installed or will overwhelm a septic system

At one utility the non-revenue water cost was over $1,400 per year plus another $1000 in chemical reagents and labor.

No Waste Stream

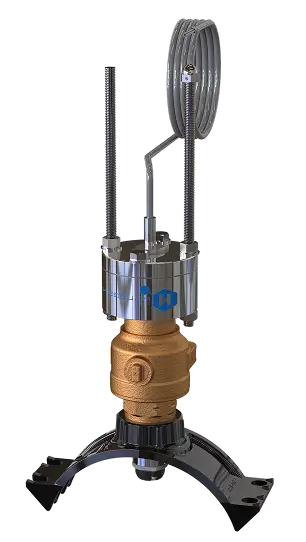

Direct In-Pipe measurement

NSF61 Certification

Not affected by flow or pressure changes

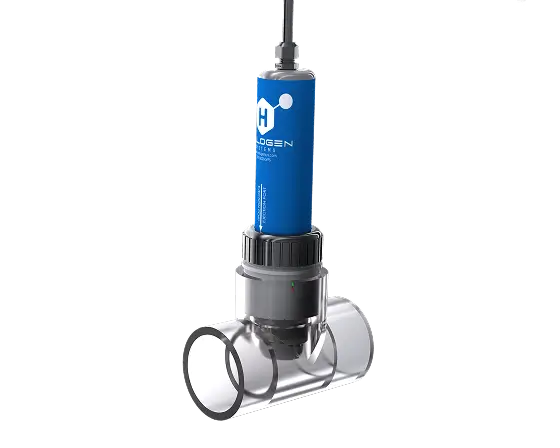

Even the side Stream version can return water to a tank or process.

Self Cleaning with SensiCLĒNE™

Chlorine sensors traditionally are high-maintenance devices. Between changing out membranes and reagents, maintaining a constant flow with no pressure spikes, and constant calibrations, operating teams spend a lot of time interacting with the sensor. The MP5™ was created with stable calibrations and low maintenance as priority requirements. To that end, Halogen designed a simple but highly effective cleaning system called SensiCLĒNE™.

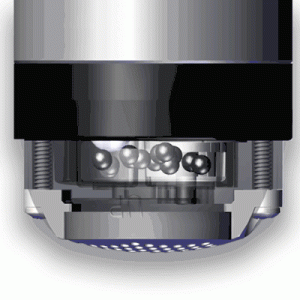

SensiCLĒNE™ utilizes the flow created by the built-in impeller to cycle special polymer beads over the three-electrode sensor and pH probe. This action prevents build-up, greatly reducing the maintenance required. The MP5™ maintains stable calibration and will typically need only a quick wear-parts replacement annually.

Lowered Maintenance

The MP5™ maintains stable calibrations and needs very little intervention from an operator. The SensiCLĒNE™ technology only requires a simple-to-do and quick-to-accomplish refresh of wear parts on an annual schedule. The kit requires minimal tools and takes only minutes. Better yet, the calibration isn’t affected by the change-out.

The screened sensor cover and two stainless screws

The magnetically coupled impeller and wear-ring

the SensiCLĒNE™ polymer beads (15)

Chlorine sensors typically are finicky, high-maintenance devices that require constant maintenance and calibration. Our SensiCLĒNE technology reduces maintenance and lengthens calibration stability.

Specifications
