Chemical Storage + Transfer

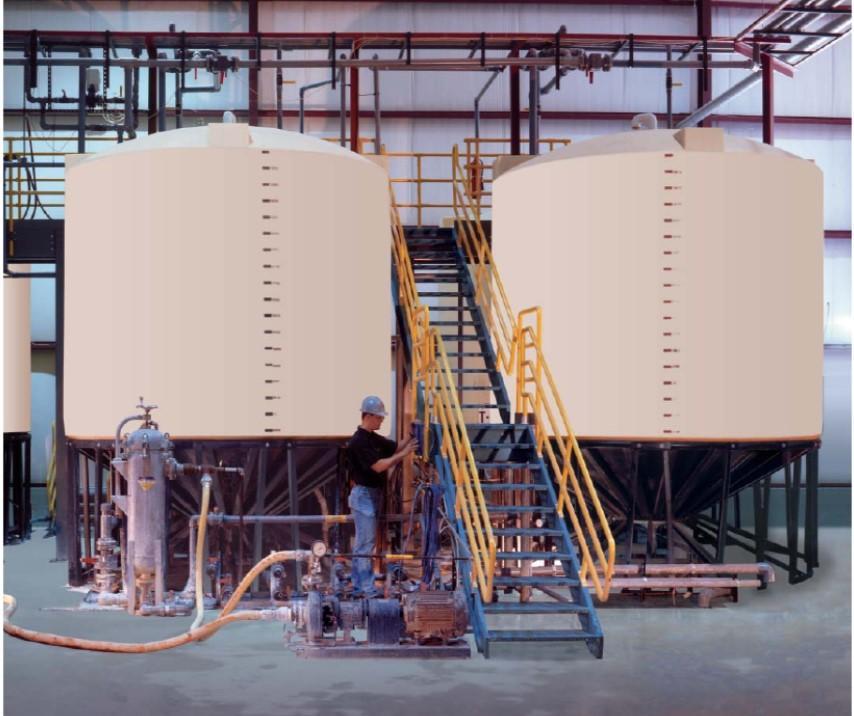

Assmann manufactures polyethylene / plastic storage tanks and basins for chemical, petroleum, waste water treatment, food processing and other industries. These above-ground poly tanks and containers can be used for bulk handling and chemical storage. Available in double-wall, vertical, conical, horizontal, and custom configurations. Download our literature here.

Assmann Polyethylene Tanks are ISO 9001: 2015 & NSF Certified

NSF Certification

  • Assmann Corporation’s Crosslink Tanks are approved for chemical storage by NSF!
  • Schulink XL-350 Crosslink Resin
  • Assmann is the FIRST Crosslink Tank approved by NSF for chemical storage!

Features

The Assmann Difference is the “The Way We Process our Plastic Storage Tanks”

1. Rotational Molding of Polyethylene Tanks and Plastic Products

We rarely exceed 500° F in the molding process. Using higher temperatures will speed up the cycle time and cut costs but will compromise the results, particularly in XLPE and thicker wall parts.Our unique and efficient large ovens, which rotate end-over-end, receive convection heat from an adjacent stationary furnace. The oven shape and foil design create optimum airflow and uniform heat to set the first stage for the highest quality parts possible.Assmann manufactures polyethylene and plastic storage tanks and containers in various shapes and capacities.

2. Cooling Without Water Allows Cross-Linking Process to Complete All The Way Through the Polytank Wall

We have separate chambers using only very high volume air movement to assure a gradual cooling of the mold and the part inside. This allows the cross-linking process, still taking place upon exiting the oven chamber, to complete all the way through the tank wall. This is essential to optimize the properties of the cross-linked part. (The whole idea is to achieve as close to 100% cross-linking as possible).

Even in 1.45″ thick walls, we consistently attain gel test results (indication of % of cross-linking that has taken place) in the high 70’s and low 80’s. (ASTM minimum gel requirement is 60%).

It is also important to mention that tanks molded of linear resins, and processed in this manner, will also reach their optimum cure rate. We introduce no water into our cooling cycle. Water spray or mist will speed up the process, but will abruptly stop the cross-linking and set up the stresses that will shorten the service life of the tank.

3. Tooling Of Plastic Storage Tanks – Assmann Does Not “Shield” Tank Walls.

In a competitive marketplace it has become a common practice to wrap and weld layers of sheet metal (shielding) around the outside of the mold to reduce heat transfer and thereby reduce thickness over as much as 80% of the area of the tank. Upper sidewalls, domes and tank bottoms are often reduced to less than 25% of the thickness of the lower sidewall.Equally important in our process is that we do not “shield” the outside of our tank molds. We exceed ASTM design hoop stress minimums for the lower sidewall and carry this wall thickness as uniformly as possible throughout the entire tank for maximum structural integrity.

Some of the obvious consequences of this practice:

  • There is greater damage when tank restraint systems are put to the test.
  • Tank domes may collapse, even under snow weight.
  • Stress cracking agents along with UV deterioration will accelerate dome failure.

Also, it is important to note “shielding” triggers a loss of control in the process resulting in uneven cooking and significant variations in gel percentages over the tank structure. This will also shorten the service life of the part.

Those using this technique sell it as “state-of-the-art” by marketing with such terms as “tapered”, “engineered”, “strati-formed walls”, and “strategic material placement”. The intent is only to reduce raw material costs. The savings, however, are rarely passed on to the end-user.
