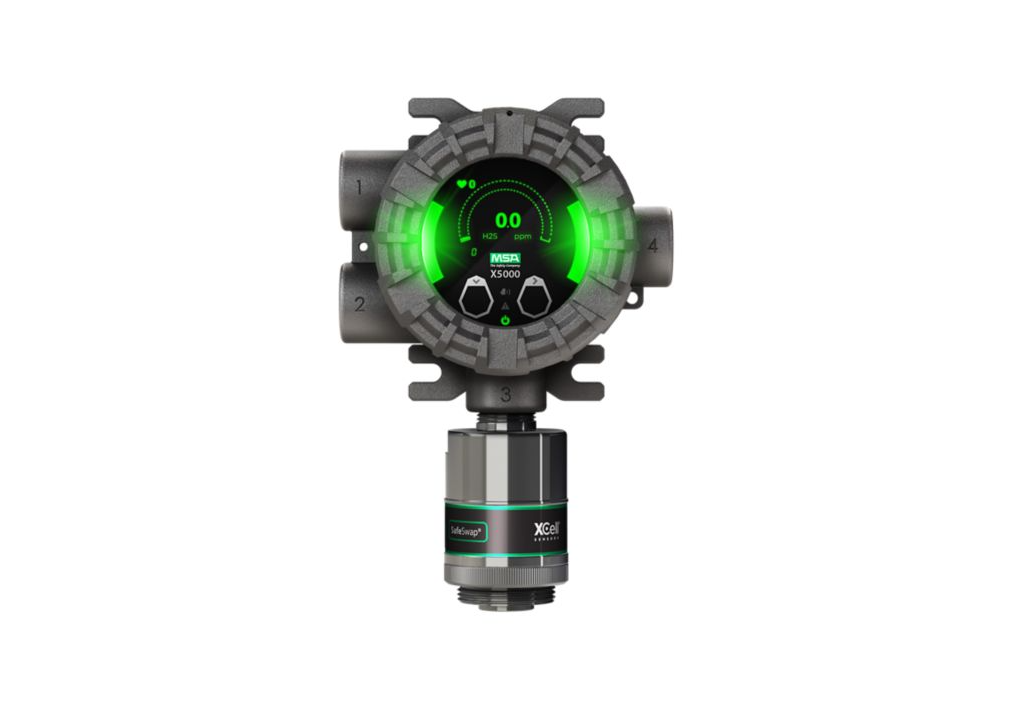

MSA ULTIMA® X5000 Gas Monitor

The ULTIMA® X5000 Gas Monitor is the future of gas detection for oxygen, toxic and combustible gases. MSA XCell® gas sensors with TruCal® technology offer calibration cycles up to 24 months (local calibration respected). The gas transmitter’s advanced, multi-lingual OLED display is easy to read and the unique touch-screen interface makes it simple to navigate.

Features

    • TruCal technology actively monitors the sensor integrity and compensates for environmental factors that cause regular electrochemical sensors to drift.
      • Automatically self-checks 4x/day
      • Reduces downtime
      • Three-year warranty on XCell sensors
    • An industry first, Diffusion Supervision warns if sensor inlet becomes blocked and unable to detect gas
    • Organic LED (OLED) display and bright status LED’s for extreme visibility
    • SafeSwap enables safe and quick replacement of gas sensors without turning off the instrument
    • Dual sensor capability doubles the sensing power with half of the footprint of a single gas transmitter
    • Bluetooth wireless technology allows mobile device to act as an HMI screen and controller. The X/S Connect App is designed with high security standards and provides real-time information to your mobile device
      • Check status and get alerts up to 75 ft. (23 m) away
      • Reduce set up time by at least 50%
    • Unique touch-button interface for an intuitive user experience and tool-free operation.
    • Identical footprint and wiring as the ULTIMA X series makes retrofits simple using the existing conduit and wiring as well as an integral mounting bracket
    • Cloud connectivity available with FieldServer ProtoAir FGFD Gateway



Specifications

Additional information

Sensor Type

Catalytic Bead (XCell combustible), Infrared (XIR Plus)

Area Classification

Class I, II, III; Div 1 & 2, T4/T5/T6, Ex db nA IIC T5 Gb (Class I, Zone 1/Zone2), Ex tb IIIC T85°C Db (Class II, Zone 21)

Enclosure

Type 4X, IP66

Approval

CSA, FM, ATEX, IECEx, INMETRO, DNV-GL Marine, CE Marking. SIL 2 suitable.

Complies with C22.2 No. 152, FM 6320

Warranty

X5000 Transmitter: 2 years, XIR PLUS 10 years source,
5 years electronics, XCell Sensors 3 years

TOXIC GAS & OXYGEN SENSOR TYPE

Carbon Dioxide (CO₂)
Ammonia (NH₃)
Carbon Monoxide (CO)
Carbon Monoxide (CO) H₂-resistant
Hydrogen Sulfide (H₂S)
Chlorine (Cl₂)
Chlorine Dioxide (ClO2)
Sulfur Dioxide (SO₂)
O₂ Oxygen (O₂)
Ammonia (NH₃)
Ethylene Oxide (ETO)
Hydrogen (H₂)
Hydrogen Chloride (HCl)
Hydrogen Cyanide (HCN)
Hydrogen Fluoride (HF)
Nitric Oxide (NO)
Nitrogen Dioxide (NO₂),
Sulfur Dioxide (SO₂)

OPERATING TEMPERATURE RANGE

-40°C to +60°C

INPUT POWER

11 to 30 VDC, 3 wire

OUTPUT

Dual 4-20 mA current source, HART

BLUETOOTH

Bluetooth Low Energy (BLE) v4.3 or higher

RELAY RATINGS

5 A @ 30 VDC; 5 A @ 220 VAC
(3X) SPDT – fault, warn, alarm

RELAY MODES

Common, discrete, horn

DISPLAY

Organic LED (multi-lingual) with contrast ratio
of 2000:1 and view angle of 160°

HART

HART 7, HART device description language available
