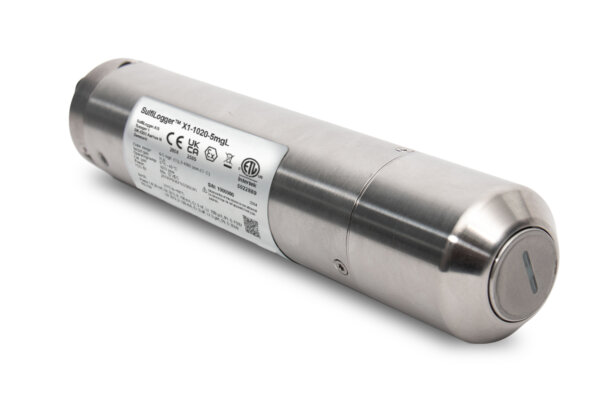

SulfiLogger™ H2S Sensor

Measure H2S anywhere and without interruptions.
The SulfiLoggerTM H2S sensor provides superior insights that enable you to adopt a proactive and data-driven approach to odor and corrosion control in wastewater, biogas, and oil & gas industries. Measure H2S anywhere to get exactly the data, you’re looking for with no need for preconditioning, complicated systems modifications, or manual sampling. Get reliable H2S insights on any time scale to identify seasonal effects, daily patterns, and unexpected spikes.

• Get continuous data in SCADA / Cloud
• Measure in wastewater, in air, or in gases
• Patent-pending sensor technology
• ATEX, HazLoc, & IECEx (X1 sensors)
• Measure in rough environments with 0-100% humidity & no oxygen
• Measure in raw wastewater, in humid air, or in wet process gases
• Measure in environments with high temperature and high pressure
• Get continuous data
• Get long-term sensor data with no need for dry-out time
• Get data in your SCADA system, in the cloud, or via RS-232 integration

The SulfiLoggerTM sensor’s reliable insights empower you to make smarter decisions. Among other applications, the sensor is ideal for these purposes:

• Initiate short-term measurement campaigns to select and prioritize mitigation activities.
• Permanently monitor critical hotspots – continuously & without interruptions.
• Control and optimize chemical/scavenger dosing operations using sensor data.

Technical Specifications

• Accuracy: +/- 5% of reading
• Detection limit: 1% of full range
• Response time: <25 seconds
• Operating humidity range: 0-100%
• Max water depth: 10 metres
• Storage temperature range: 0 °C to +40 °C (32 °F to +104 °F)
• Design temperature range: -20 °C to +60 °C (-4 °F to +140 °F)
• Power input options: 4-20 mA loop power, DC power (12-28 VDC), Batteries
• Data output options: 4-20 mA analogue signal, RS-232 digital signal
• Cloud data
