M4 – FLEXFLO® Peristaltic Metering Pump

Product Details

Technical Overview:

GPH .0028 – 158.5 Enclosure Rating NEMA 4X (IP66)
LPH .06 – 600 Standards NSF/ANSI 61, CE, cETLus, RoHS
PSI 125 Control Methods Manual, Remote Analog/Digital
Bar 8.6 Power Supply 100 to 240VAC-50/60Hz



  • Self-priming – even against maximum line pressure. By-pass valves are not required. Cannot vapor lock or lose prime. 30ft of suction lift. Gentle low shear pumping action.
  • Tube Failure Detection (TFD) senses tube rupture by detecting chemical in the pump head. No false triggering – Patented
  • Optional dual channel tube design for optimum performance and pressure capability
Communication and Interface:
    • Operator friendly digital touch pad with menu driven software.
    • VGA Graphic multi-color backlit LCD displays remote/local control status, motor speed,
    • output rate, input signal values, service and alarm status.

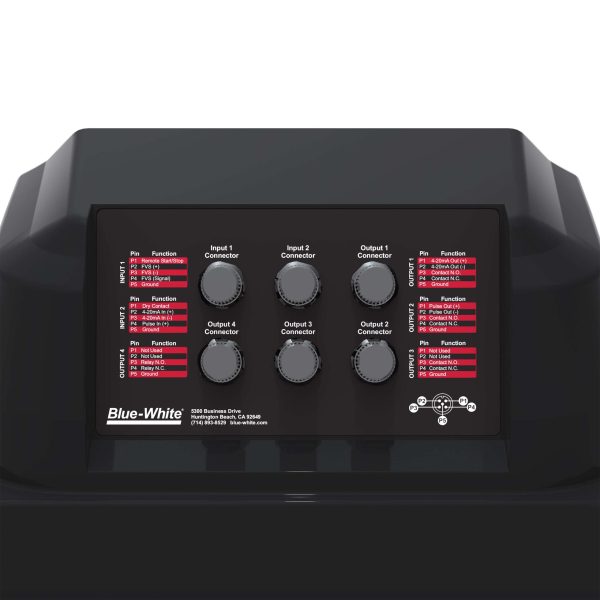

    • Inputs include: 4-20mA, 0-10Vdc, and Pulse inputs for remote external speed control and 0-30 VDC / contact closure remote start/stop
    • Outputs include: Scalable 4-20mA or pulse, one 250V/6A relay and three 115V/1A contact closures assignable to monitor up to 17 different pump functions including TFD, FVS, remote/local control setting, motor on, fault, current operating mode, and others.
Superior Design:
  • 5 Year Warranty
  • 10,000:1 turndown ratio
  • NEMA 4X (IP66) wash-down, chemically resistant powder coated enclosure
  • Heavy duty rotor means no flexing and increased accuracy with no metal springs or hinges to corrode.
Safety Features:
  • Tube Failure Detection (TFD) senses tube rupture preventing hazardous chemical spills
  • Security programmable 4-digit password to prevent tampering
Optional Components Available:
  • Mounting Extended Brackets (72000-380) – 1 Pair, SS, 4 SS Screws

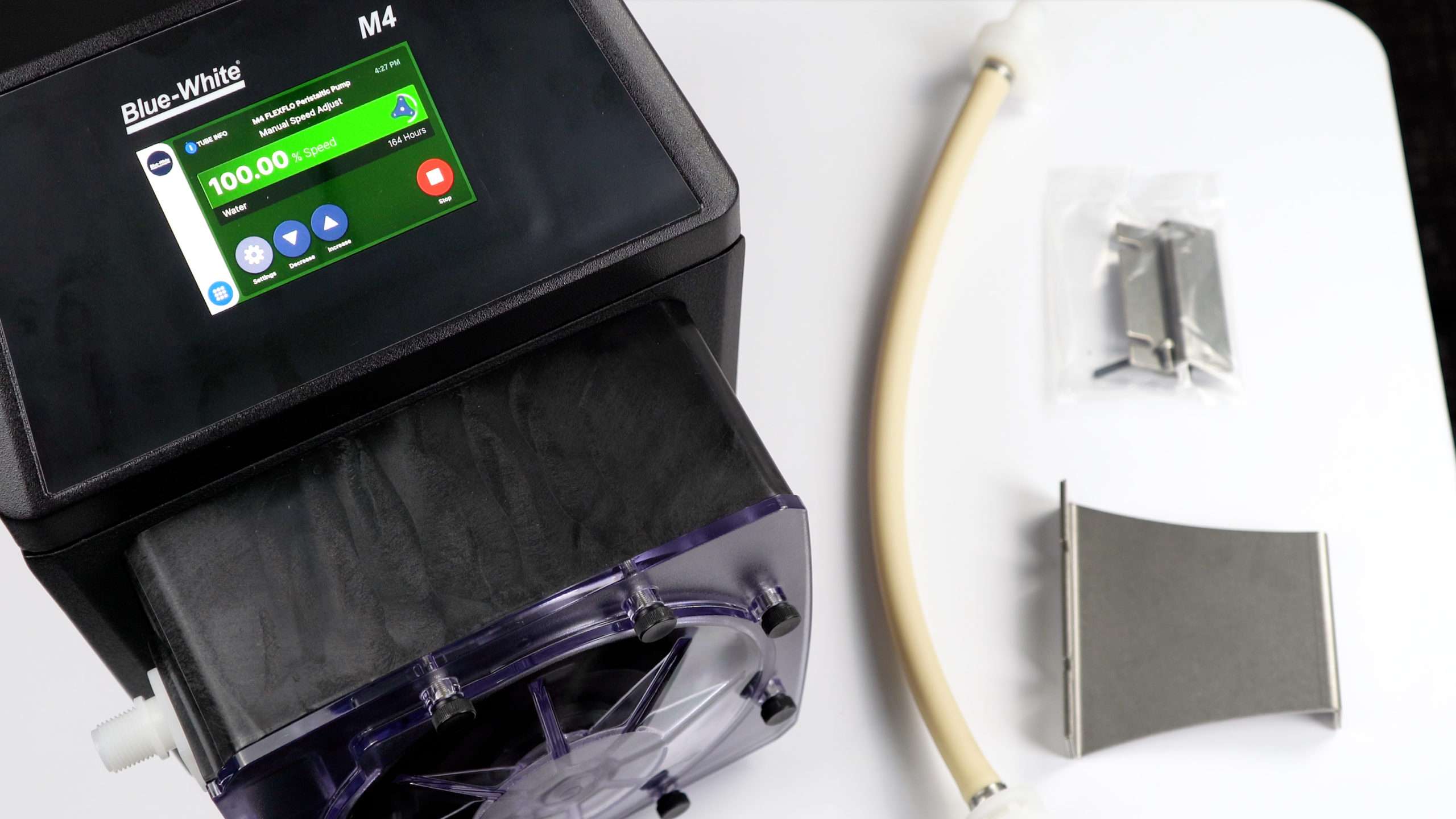

What’s Included:
  • M4 Peristaltic Metering Pump
  • Two tube assemblies
  • With “B” ½” hose barb and “M” M/NPT type connections:
    • Suction foot valve / strainer
