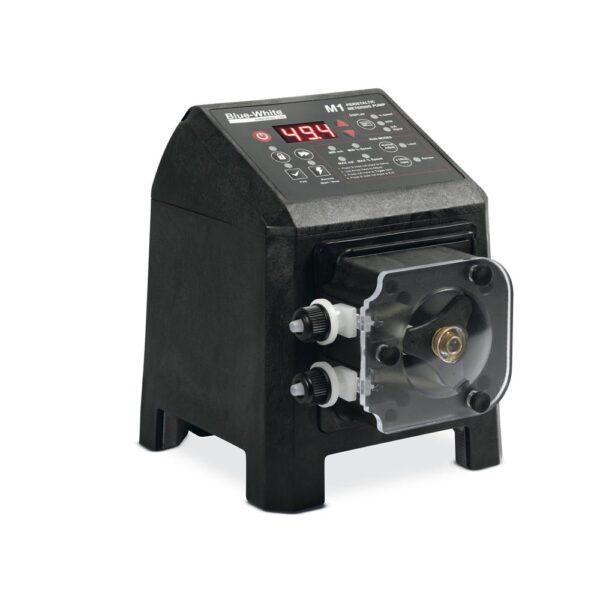

M1 – FLEXFLO® Peristaltic Metering Pump

Standardize on one chemical feed solution with the FLEXFLO® M1 Peristaltic Chemical Metering Pump. The M1 never loses prime, requires minimal maintenance, and has a high energy-efficient rating. This self-priming chemical metering pump delivers smooth chemical feed and does not require check valves.

Product Details

Technical Overview:
GPH .0001 – 5.60 Enclosure Rating NEMA 4X (IP66)
LPH .0004 – 21.2 Standards NSF/ANSI 61, CE, cETLus
PSI 100 Control Methods Manual, Remote Analog
Bar 6.9 Power Supply 100 to 240VAC-50/60Hz



Benefits of a Peristaltic Pump:
  • Peristaltic pump design does not have valves that can clog requiring maintenance.
  • Self-priming – even against maximum line pressure. By-pass valves are not required.
  • Cannot vapor lock or lose prime.
  • Output rates to: .0001 – 5.6 GPH (.0004 – 21.2 LPH) and pressures to 100 PSI (6.89 Bar).
Communication & Interface:
  • Remote Start/Stop: Non-powered dry contact closure for remote start/stop.
  • Relay outputs include a single 250V / 3A and a single solid-state.
  • Compatible with Blue-White’s output Flow Verification Sensor (FVS) system.
  • 4-20mA SCADA input.
Superior Engineered Design:
  • 3 Year Warranty
  • CNC precision-machined squeeze rollers for optimum squeeze, unparalleled accuracy, and tube life.
  • Heavy-duty rotor – single piece plastic rotor means no flexing and increased accuracy with no metal springs or hinges to corrode.
  • Energy-efficient brushless DC motor.
  • Specially engineered tubing for long life.
Safety Features:
  • Enhanced Tube Failure Detection (TFD+) Senses tube rupture by detecting chemicals in the pump head. No false triggering – Patented
  • Lockout feature prevents any unwanted tampering – Patent pending
  • Display shield to protect controls from harsh environments
What’s Included:
  • M1 Peristaltic Metering Pump
  • Two tube assemblies
  • Mounting hardware kit
  • Display shield
