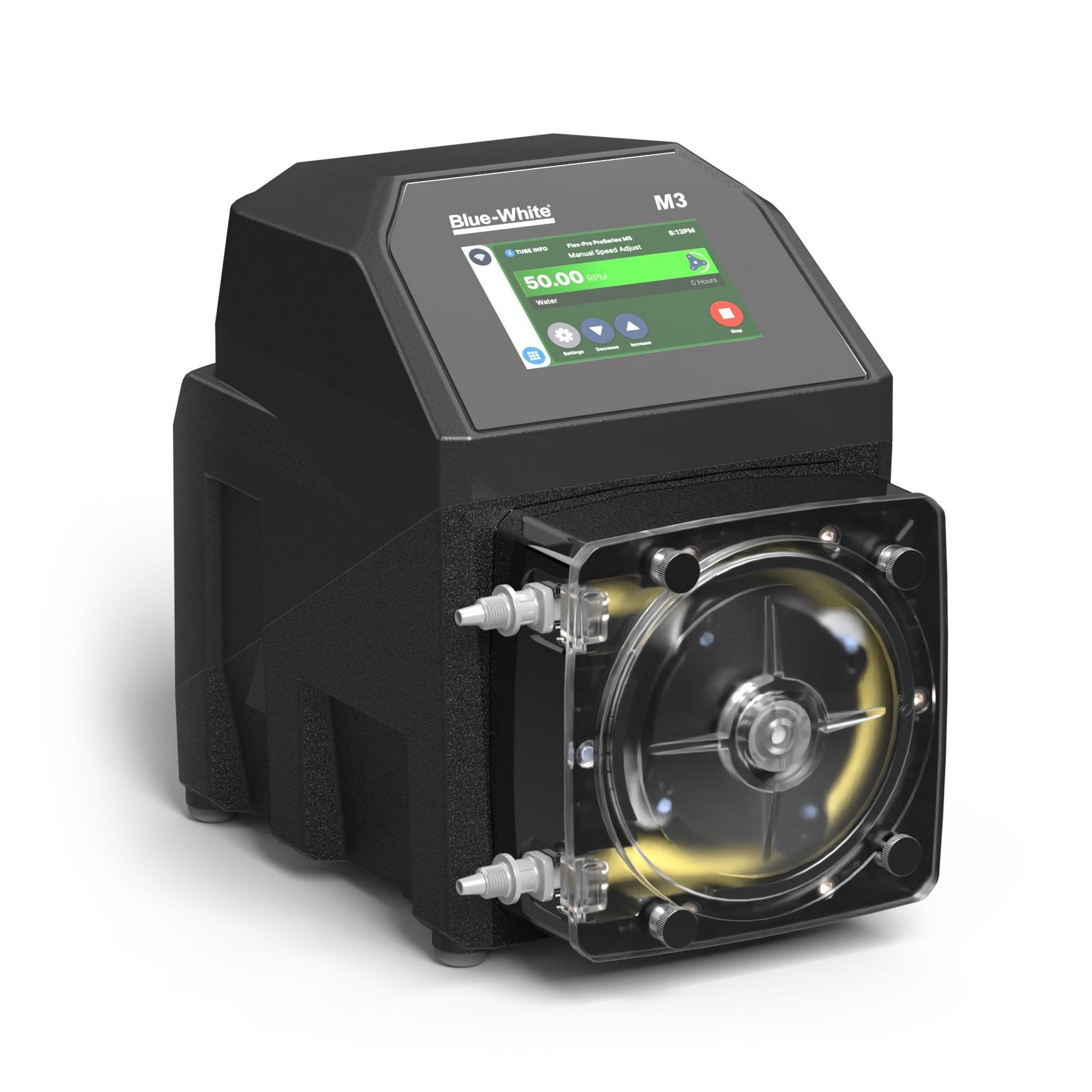

M3 – FLEXFLO® Peristaltic Metering Pump

Product Details

Technical Overview:

GPH .0002 – 33.3 Enclosure Rating NEMA 4X (IP66)
LPH .0007 – 126 Standards cETLus, CE, NSF61
PSI 125 Control Methods Manual, Remote Analog/Digital, EtherNet/IP, Modbus TCP/IP, Profibus
Bar 8.6 Power Supply 100 to 240VAC-50/60Hz



Features

Benefits:
  • Self-priming – even against maximum line pressure. By-pass valves are not required. Cannot vapor lock or lose prime. 30ft of suction lift. Gentle low shear pumping action.
  • Tube Failure Detection (TFD) senses tube rupture by detecting chemical in the pump head. No false triggering – Patented
  • Optional dual channel tube design for optimum performance and pressure capability
Communication and Interface:
  • 5” touchscreen color LCD display
  • User-friendly configurations
  • Inputs include: 4-20mA, Pulse Inputs, Industrial Protocols, Remote Start/Stop
Superior Design:
  • 5 Year Warranty
  • 10,000:1 turndown ratio
  • NEMA 4X (IP66) wash-down, chemically resistant powder coated enclosure
  • Heavy duty rotor means no flexing and increased accuracy with no metal springs or hinges to corrode.
Safety Features:
  • Tube Failure Detection (TFD) senses tube rupture preventing hazardous chemical spills
  • Security programmable 6-digit password to prevent tampering
Optional Components Available:
  • Mounting Extended Brackets (72000-380) – 1 Pair, SS, 4 SS Screws
What’s Included:
  • M3 Peristaltic Metering Pump
  • Two tube assemblies
  • Tube installation tool
  • Mounting hardware kit
