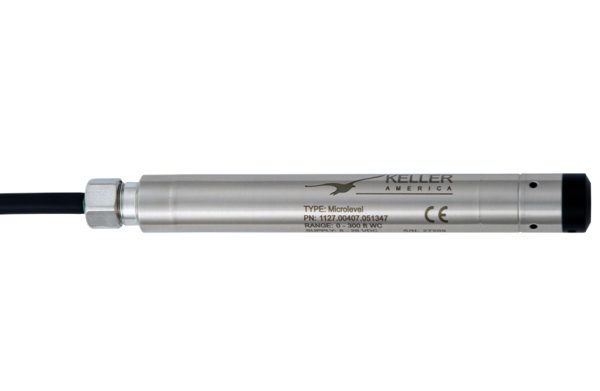

KELLER Microlevel Microbore Submersible Level Transmitter

The Microlevel combines the high accuracy of the Acculevel with a class-leading housing diameter of only 0.63″. It incorporates KELLER’s proven microprocessor-controlled signal conditioning to provide outstanding accuracy over temperature. It provides dual outputs, one 4 to 20mA analog and one digital RS485. The RS485 connection allows users to retrieve both level and temperature data, interface with a PC, and rescale the analog output from 10% to 110% of the basic range (converter cable and KELLER software required).

The Microlevel is assembled to customer specifications, including custom pressure ranges and cable lengths, and includes KELLER’s guaranteed lightning protection. This protection is included at no additional cost and carries a lifetime guarantee against damage from electrical surge.

KELLER America is also pleased to announce that the Microlevel is now available in titanium for use in more aggressive media applications not suited for stainless steel.

Interesting Features

· Certified to NSF/ANSI 61 and 372 standards for use in drinking water applications
· Excellent 0.1% FS static accuracy, 0.25% Total Error Band (TEB)
· 4 to 20mA models include guaranteed lightning protection at no additional cost
· 316L stainless construction standard – Optional titanium for severe applications
· Class-leading 0.63” outside diameter
· 2-year warranty covers defects in materials and workmanship
· User-rangeable analog output ensures compatibility as requirements change
· RS485 modified-MODBUS compatible interface allows up to 128 transmitters on a
single bus
· Standard dual (analog & RS485) outputs simplify interface to controls, data collection,
and telemetry systems
· 2021 IIJA Build America, Buy America-compliant configurations available
· Standard 3-day lead time
